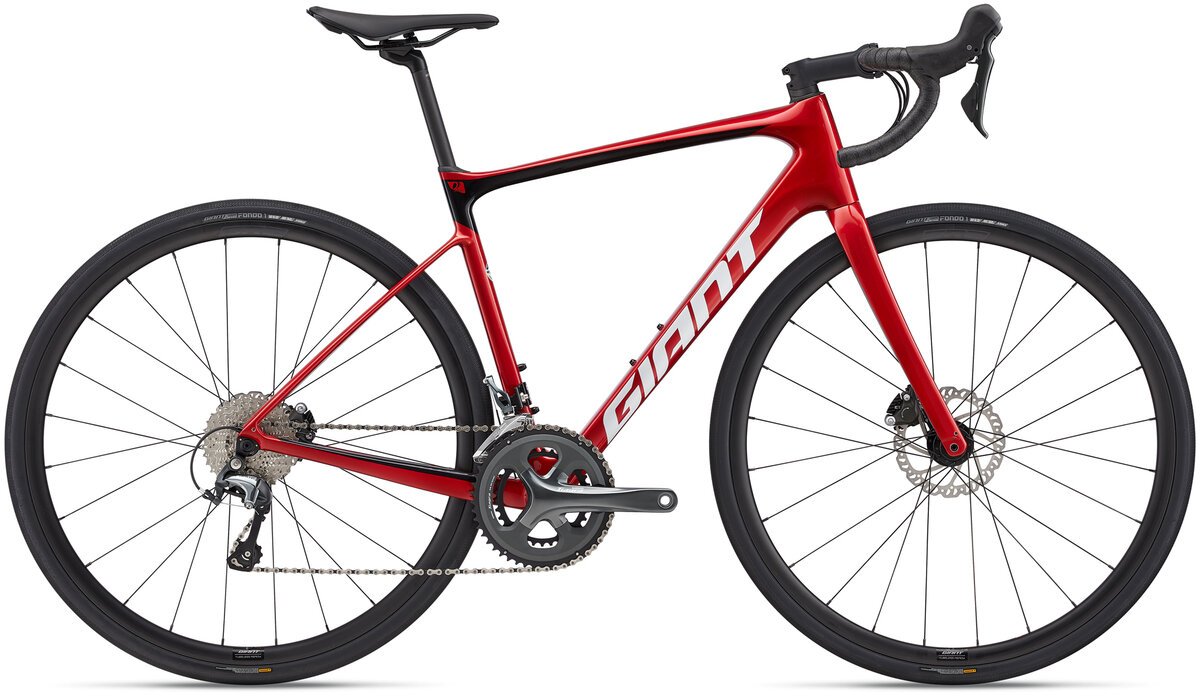

Giant Defy Advanced 3

Giant Defy Advanced 3
This item is currently not available.

Details

Handcrafted with Advanced-grade composite material, the Defy Advanced is made with a specific carbon layup to give it an efficient, high-performance ride quality that helps you push new limits of endurance. The D-Fuse seatpost and handlebar system also help reduce road vibrations, adding to its smooth, compliant feel on the road. A tubeless Giant WheelSystem and tires boost speed and efficiency with a reduced risk of flats. And for added control, it features integrated disc brakes with flat-mount disc brake tabs and 12mm thru-axles.

Geometry

Geometry Chart:
SIZESMALLMEDIUMMED/LRGLARGE
A SEAT TUBE LENGTH (mm) 445 480 515 535
B SEAT TUBE ANGLE 74.0° 73.5° 73.0° 73.0°
C TOP TUBE LENGTH (mm) 530 545 560 575
D HEAD TUBE LENGTH (mm) 140 160 185 205
E HEAD TUBE ANGLE 71.8° 72.5° 72.5° 72.5°
F FORK RAKE (mm) 50 50 50 50
G TRAIL (mm) 63.1 58.2 58.2 58.2
H WHEELBASE (mm) 995 998 1010 1025
I CHAIN STAY LENGTH (mm) 420 420 420 420
J BOTTOM BRACKET DROP (mm) 75 75 70 70
K STACK (mm) 546 567 586 605
L REACH (mm) 374 377 381 390
M STAND OVER HEIGHT (mm) 760 786 816 835
N HANDLEBAR WIDTH (mm) 400 420 420 440
O STEM LENGTH (mm) 90 100 100 110
P CRANK LENGTH (mm) 170 172.5 172.5 175
Q WHEEL SIZE 700C 700C 700C 700C
Sizes:
Small 165 cm to 175 cm
Medium 171 cm to 181 cm
Medium/Large 177 cm to 187 cm
Large 183 cm to 193 cm

Specs

Frame Advanced-Grade Composite, disc
Fork Advanced-Grade Composite, full-composite OverDrive steerer, disc
Rims Giant S-R2 Disc wheelset
Hubs Giant S-R2 Disc wheelset, 12mm thru-axle
Spokes Giant S-R2 Disc wheelset
Tires Giant Gavia Fondo 1, tubeless, 700x32c (33.5mm), folding
Bottom Bracket Shimano, press fit
Crankset Shimano Tiagra, 34/50
Shifters Shimano Tiagra
Front Derailleur Shimano Tiagra
Rear Derailleur Shimano Tiagra
Cassette/Freewheel Shimano Tiagra, 11x34
Chain KMC X10-1
Brakes Shimano Tiagra hydraulic, Giant MPH rotors [F]160mm, [R]140mm
Brake Levers Shimano Tiagra
Handlebars Giant Contact SL D-Fuse
Tape/Grips Stratus Lite 3.0
Stem Giant Contact
Seatpost Giant D-Fuse, composite, 14mm offset
Saddle Giant Approach
Accessories & Extras tubeless prepared, 35mm max tire size

* Subject to change without notice.
