RIDE TRAILS WITH CONFIDENCE, CONTROL AND FLAT-OUT FUN. THIS NEW E-BIKE HAS A POWERFUL MOTOR, PLUSH SUSPENSION, AND INTUITIVE CONTROLS THAT CAN TAKE YOUR TRAIL ADVENTURES TO A WHOLE NEW LEVEL.
KEY PERFORMANCE FACTORS
Powerful pedaling support
The new compact SyncDrive Sport motor has Smart Assist technology and is sonically tuned for smooth, quiet performance. It delivers 75Nm of torque for high power, even at low speeds on technical trails.
ALUXX SL aluminum frame with 120mm travel FlexPoint rear suspension and larger diameter 29-inch wheels produces a smooth, stable ride on technical trails.
The new EnergyPak offers ample range and the integrated battery pack makes charging quick and easy.
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The bar below gives an approximate range. Conditions are categorized as extreme, good, and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
ENERGYPAK 625 / SYNCDRIVE SPORT
- Extreme: 37 miles
- Good: 68 miles
- Ideal: 118 miles
The SyncDrive Sport motor delivers 75Nm of torque for smooth acceleration and climbing power. FlexPoint rear suspension (125mm travel, plus 140mm up front) gobbles up rocks and other trail obstacles. The RideControl Dash control unit has integrated handlebar support buttons for improved ergonomic control. And a new EnergyPak battery system lets riders push their trail riding adventures farther.
GIANT E-BIKE TECHNOLOGIES
This integrated group of technologies forms the operating system of every Giant E-bike. The user-friendly components—including the motor, control unit and battery pack—function as part of an overarching system that seamlessly combines electric power with human power to produce a smart, natural and powerful ride experience.
SyncDrive Sport motor has Smart Assist technology and is sonically tuned for smooth, quiet performance. It delivers 75Nm of torque for powerful acceleration, even at low speeds, making it a versatile choice for variable terrain.
ALUXX SL ALUMINUM
This state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. The frameset also features unique welding technologies for a high-performance ride quality.
A proven single-pivot design that uses the flexing action of the chainstay / seatstay junction to produce a lightweight and durable suspension system with 125mm of rear travel.
Climb steep mountains and enjoy fun descents all day long with the down tube-integrated new EnergyPak. It can charge up to 80 percent in 2.2 hours.
Option to carry an EnergyPak Plus range extender, which provides 250Wh of additional power.
Six smart sensors precisely measure the power being applied to the pedals so the motor can provide just the right amount of assistance to create a natural, powerful riding experience. This helps optimize energy efficiency for both the rider and the battery system.
This two-in-one unit features buttons to control support modes plus an integrated color display. You can check range, battery level and support mode, along with standard cycling data such as speed and distance without having to add another screen to the E-bike. It also has an ANT+ connection so you can connect a heart rate monitor and other fitness devices.
GIANT RIDECONTROL APP
RideControl Dash wirelessly connects with the RideControl App, so your smartphone can function as a display for ride data and system updates.

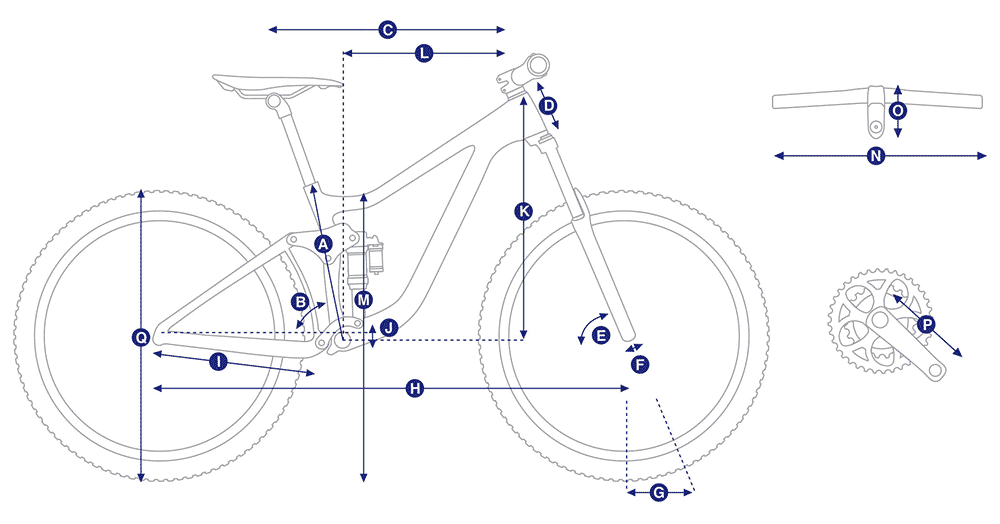

|A. SEAT TUBE LENGTH (mm)||400||425||450||475|
|B. SEAT TUBE ANGLE||76.0°||76.0°||76.0°||76.0°|
|C. TOP TUBE LENGTH (mm)||580||607||639||671|
|D. HEAD TUBE LENGTH (mm)||105||115||125||135|
|E. HEAD TUBE ANGLE||65.5°||65.5°||65.5°||65.5°|
|F. FORK RAKE (mm)||44||44||44||44|
|G. TRAIL (mm)||124||124||124||124|
|H. WHEELBASE (mm)||1204||1233||1267||1301|
|I. CHAIN STAY LENGTH (mm)||468||468||468||468|
|J. BOTTOM BRACKET DROP (mm)||40||40||40||40|
|K. STACK (mm)||618||627||636||646|
|L. REACH (mm)||425||450||480||510|
|M. STAND OVER HEIGHT (mm)||760||760||780||796|
|N. HANDLEBAR WIDTH (mm)||780||780||780||780|
|O. STEM LENGTH (mm)||40||40||50||50|
|P. CRANK LENGTH (mm)||165||165||165||165|
|Q. WHEEL SIZE||29"||29"||29"||29"|
|Frame Size||Rider Height|
|Small||5'4" - 5'8"|
|Medium||5'7" - 5'11"|
|Large||5'10" - 6'2"|
|X-Large||6'2" - 6'6"|
|Frame||ALUXX SL-grade aluminum, 125mm travel FlexPoint suspension system, 148x12 rear axle, Universal Derrailleur hanger, 184x44 shock, 1.5~1.8" headset|
|Fork||SR Suntour XCR 34 LO-R, 140mm travel, tapered steerer, Lockout, 110x15 thru-axle|
|Rear Shock||SR Suntour Raidon R, 190x45mm, custom tuned|
|Rims||Giant AM, Tubeless ready, 30mm inner width [F] 27.5" (S size), 29" (M/L/XL size) [R] Giant AM 27.5" , Tubeless ready, 30mm inner width|
|Hubs||Giant eTracker Boost, [F] 110x15 [R] 148x12mm|
|Tires||Maxxis Rekon 27.5x2.4"(S size), 29x2.4" (M/L/XL size), Foldable, TLR, EXO, 60TPI [F], Maxxis Rekon 27.5x2.4" Foldable, TLR, EXO, 60TPI [R]|
|Crankset||FSA Comet E-Bike crank arm set FSA MegaTooth Direct-mount 1X steel 36T|
|Shifters||Shimano Deore LinkGlide|
|Front Derailleur||MRP HD2 co-moulded chain guide|
|Rear Derailleur||Shimano Deore LinkGlide, 10-speed|
|Cassette/Freewheel||Shimano LinkGlide, CS-LG400-10, 11-43T, 10-speed|
|Chain||Shimano, LinkGlide, CN-LG500|
|Brakes||Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm|
|Brake Levers||Tektro HD-M745 Orion|
|Handlebars||Giant Connect TR Riser 31.8x780mm|
|Tape/Grips||Giant Connect ErgoMax lock-on|
|Seatpost||Giant 30.9mm, 2-bolt Micro Adjustable, Forged aluminum|
|Accessories & Extras||Giant Rekon E50 HL Axa BlueLine Steady E6 rear|
|Motor||SyncDrive Sport, 75Nm, powered by Yamaha|
|Battery||EnergyPak Smart 625, EnergyPak Plus 250Wh range extender compatible|
|Controller/Display||RideControl Dash / RideControl Dash, full color LCD screen|
* Subject to change without notice.
|Charcoal Plum / Small||04712878880313||2303363104||210000033511|
|Charcoal Plum / Medium||04712878880320||2303363105||210000033512|
|Charcoal Plum / Large||04712878880337||2303363107||210000033513|
|Charcoal Plum / X-Large||04712878880344||2303363108||210000033514|
