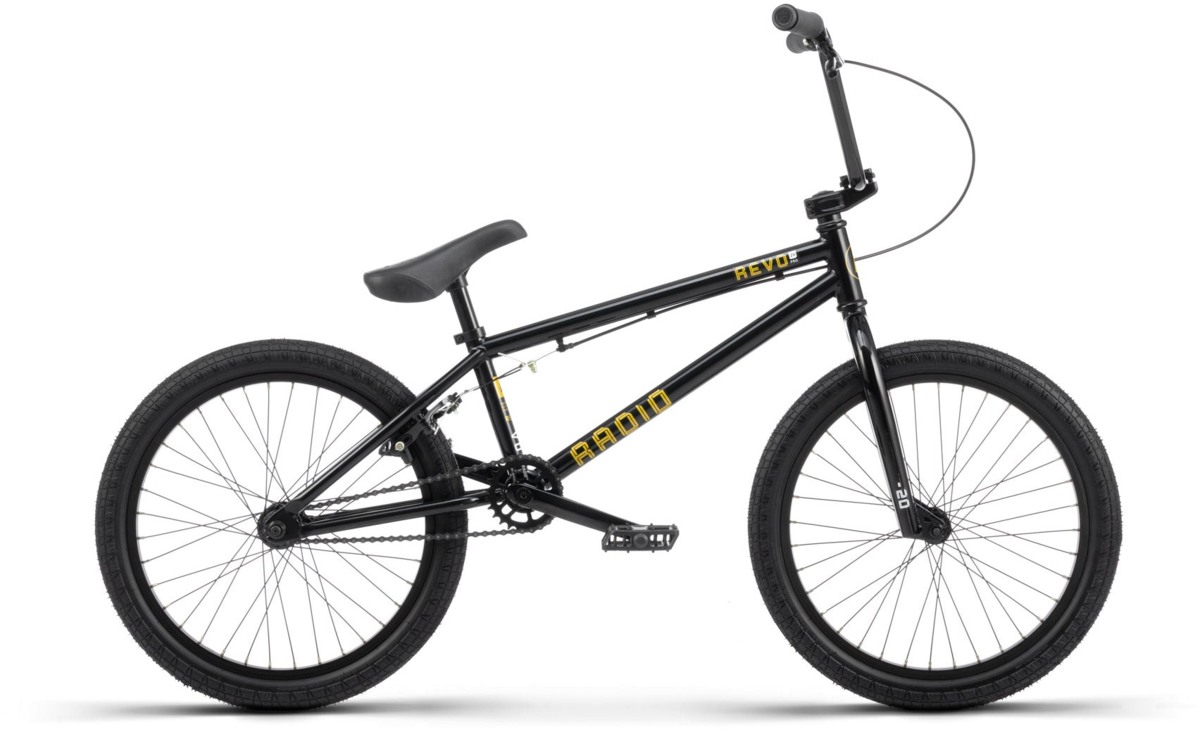

Radio Revo Pro
Details
The Revo line allows you to get your first taste of the BMX world on a solid and well-designed bike. We took extra care when hand-selecting the components on these bikes to ensure that the bike could be ridden straight out of the box, simple to work on and maintain, but also easily upgradeable over time. Despite the low price point, the Revo is packed full of great features like 25-9 gearing, tapered fork legs, and short/responsive pro-inspired geometry.
The Radio Bikes Revo 20-inch Pro Complete Bike allows you to get your first taste of the BMX world on a solid and well-designed bike. Building on the Revo 20-inch, the Revo Pro adds a 3pc crank upgrade making this machine even more dialled than ever before.
| Top Tube Length | 20" |
|---|---|
| Chain Stay Length | 13" |
| Head Tube Angle | 75° |
| Seat Tube Angle | 71.5° |
| Bottom Bracket Height | 11.75" |
| Standover Height | 7.8" |
Specs
| Frame | RADIO “REVO PRO 20” frame, full 1020 hi-ten |
|---|---|
| Fork | RADIO “AM 20” fork, 1020 hi-ten, crmo steerer |
| Rims | SALT “AM” rim, straight single wall, 36h |
| Hubs |
FRONT HUB: RADIO "ROOKIE" hub, steel, lb, 3/8"s, 36h REAR HUB: RADIO “ROOKIE” cassette hub, steel, lb, 9T, 14mm axle, 36h |
| Tires | RADIO “ROOKIE” tires, 20?x2.2?, front & rear |
| Bottom Bracket | RADIO "US" bb set, loose ball |
| Crankset | RADIO “ROOKIE” 3pc crank, forged, crmo, 170mm |
| Chainrings | RADIO “ROOKIE” sprocket, steel, 25t |
| Cassette/Freewheel | cassette driver, 9t |
| Chain | KMC “S1” chain |
| Brakes | RADIO "AM" u-brake, alloy, rear |
| Brake Levers | RADIO “AM” brake lever, alloy |
| Handlebars | RADIO “REVO PRO 20” bar, hi-ten |
| Tape/Grips | RADIO “AM” grips, flangeless, 150mm |
| Stem | SALT “AM” topload stem, 50mm reach |
| Headset | FSA A-headset, loose ball |
| Saddle | RADIO "CENTURY" combo seat, slim padded |
| Pedals | RADIO “ROOKIE” pedals, nylon |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN |
|---|---|---|
| Black / 20-Inch / 20-Inch | 04055822538992 | 100001774 |
